Accessories
Manual openers, handles, electric motors, roof access accessories, wind and rain sensors, buttons for Plasticor skydomes.
Wide range of accessories for the Plasticor skydomes
The Plasticor skydomes with ventillation function can be opened manually and by electric motors. The accidental damage of the layers of the roof access skydomes can be prevented by a simple chain or pistons. Optionally available accessories of the Plasticor skydomes can be found hereunder.
Opening with electric motors
You can order electric motors operating on either 24V or 230V/50 Hz to open the Plasticor skydomes. You can find the available variations in the next table. For opening a skylight of dimension "A" bigger than 140 cm, it is necessary to anchor the openers at two points. This anchoring is called TANDEM.
| operating voltage |
lift height |
lift power |
TANDEM available? |
| 230V/50 Hz | 300 mm | 450N | - |
| 230V/50 Hz | 350 mm | 650N | yes |
| 230V/50 Hz | 550 mm | 650N | yes |
| 230V/50 Hz | 750 mm | 650N | yes |
| 24V | 350 mm | 750N | yes |
Additional accessories available for the electric motors:
| Centrale with battery, 24V |
| Interior button |
| Wind and rain sensor, 24V |
| Wind and rain sensor, 230V with control unit for 4 groups* |
| Remote control of electrically ventilated skydomes with 230V motors |
* 1 group = max. 10 pcs of electric motors. It's possible to join max. 40 electric motors in total

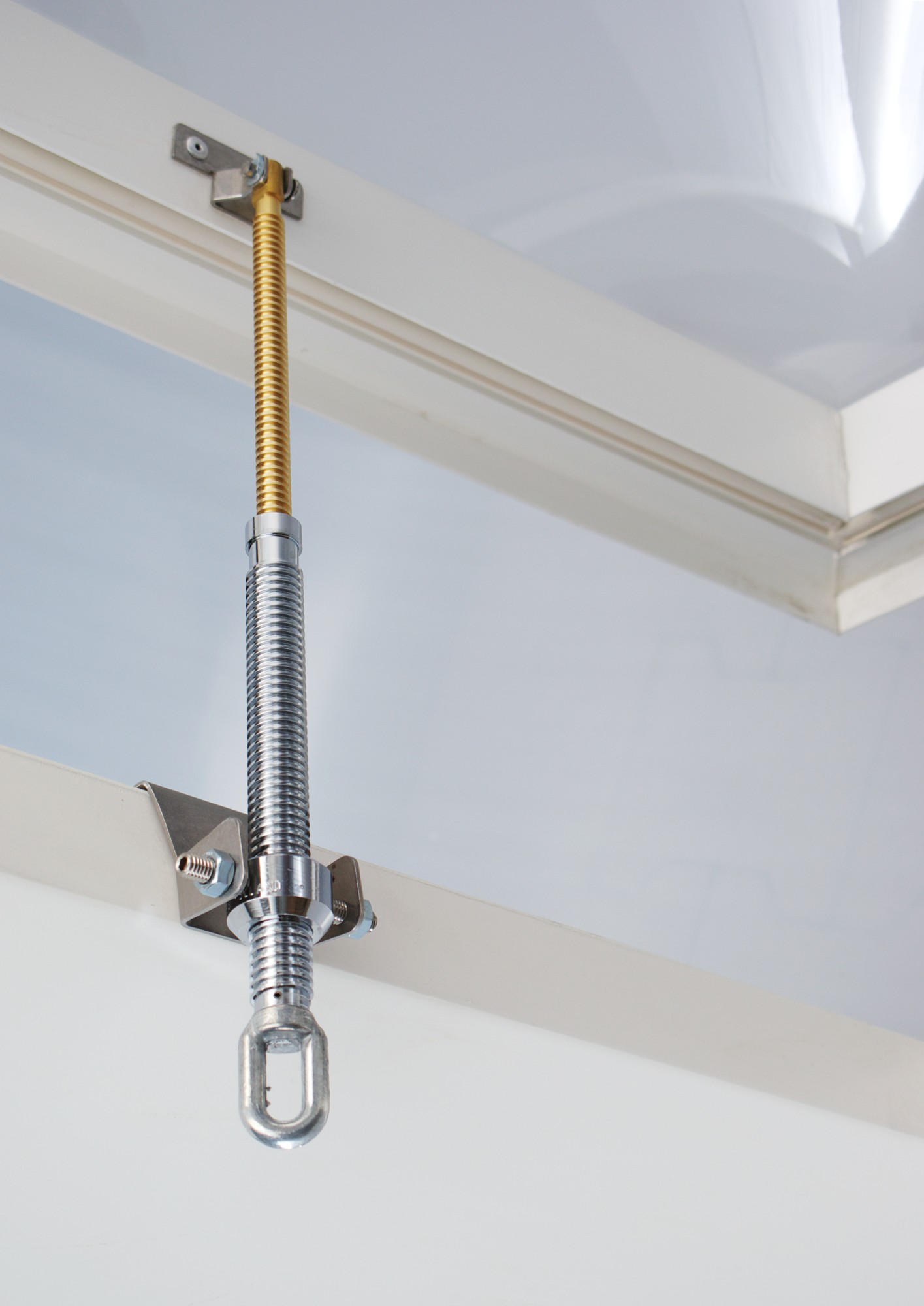

Manual opening
We are offering the following manual openers and handles to open the skylights manually. For opening a skylight of dimension "A" bigger than 140 cm, it is necessary to anchor the openers at two points. This anchoring is called TANDEM. Manual tandem consists of two manual openers and a connection bar of required length.
| Manual opener, lift 300 mm |
| Manual opener, lift 300 mm - tandem |
| Handle, 1,5 m |
| Handle |
| Handle, 2,5 m |
| Handle, 3 m |
Skylights for roof access
The available accessories for roof access skydomes:
| Handle with chains |
| Handle with pistons |
| Loops for padlock |
